FS - Heavy Wall Aluminum Frame Series



Frame Features

  • Available in various overall face height and jamb widths

  • Rectangle tubular aluminum with 1/8" thick walls
  • Shear block mortise and tenon corner joint assembly
  • Applied surface mounted door stops
  • 1/8" heavy wall reinforcing on door stops for rim strikes and closer
  • 1/8" heavy wall hardware reinforcing
  • Tee-slotted weatherstripping included on door stops
  • Gutter designed Side Light and Transom Glazing
  • Frame glazing options are 1/4" or 1" glass pockets
  • Standard aluminum finishes are anodized Class 1, Clear Satin or Dark  Bronze
  • Kynar painted finish color options are available
  • Contact us for other glass thickness or finish color requirements






FS24 Aluminum Framing



2 x 4 1/2 Frame Jamb Size

  • Rectangular Aluminum Framing

  • Heavy Wall Closed Back System
  • Applied Door Stops
  • Applied 1/4β€³ or 1β€³ Pocket Glazing
  • Exterior Gutter Glazing
  • Shear Block Joint Assembly

Product Information

  • Extruded Aluminum

  • 6063-T6 Tempered Alloy
  • 1/8β€³ Heavy Wall Thickness
  • Class 1 – 7 mil. Anodized
  • Stocked – Clear Satin or Dark Bronze
  • Available Color Matched Painted Finishes






FS25 Aluminum Framing



2 x 5 Frame Jamb Size

  • Rectangular Aluminum Framing

  • Heavy Wall Closed Back System
  • Applied Door Stops
  • Applied 1/4β€³ or 1β€³ Pocket Glazing
  • Exterior Gutter Glazing
  • Shear Block Joint Assembly

Product Information

  • Extruded Aluminum

  • 6063-T6 Tempered Alloy
  • 1/8β€³ Heavy Wall Thickness
  • Class 1 – 7 mil. Anodized Finishes
  • Stocked – Clear Satin or Dark Bronze
  • Available Color Matched Painted Finishes






FS26 Aluminum Framing



2 x 6 Frame Jamb Size

  • Rectangular Aluminum Framing

  • Heavy Wall Closed Back System
  • Applied Door Stops
  • Applied 1/4β€³ or 1β€³ Pocket Glazing
  • Exterior Gutter Glazing
  • Shear Block Joint Assembly

Product Information

  • Extruded Aluminum

  • 6063-T6 Tempered Alloy
  • 1/8β€³ Heavy Wall Thickness
  • Class 1 – 7 mil. Anodized Finishes
  • Stocked – Clear Satin or Dark Bronze
  • Available Color Matched Painted Finishes






FS28 Aluminum Framing



2 x 8 Frame Jamb Size

  • Rectangular Aluminum Framing

  • Heavy Wall Closed Back System
  • Applied Door Stops
  • Applied 1/4β€³ or 1β€³ Pocket Glazing
  • Exterior Gutter Glazing
  • Shear Block Joint Assembly

Product Information

  • Extruded Aluminum

  • 6063-T6 Tempered Alloy
  • 1/8β€³ Heavy Wall Thickness
  • Class 1 – 7 mil. Anodized Finishes
  • Stocked – Clear Satin or Dark Bronze
  • Available Color Matched Painted Finishes

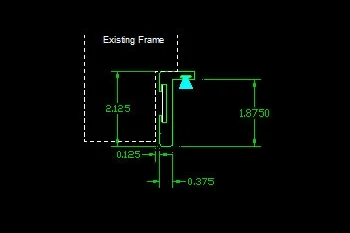

FSR6 Retrofit Insert Frame



Insert frames are used for a new door installation where an existing frame is to remain in place.

  • Extruded Aluminum – β€œL” Shaped Insert Framing
  • 3/8β€³ Thickness
  • 6063-T6 Aluminum Alloy
  • Class 1-7ml. Anodized Clear Satin or Dark Bronze
  • Colors Optional: Kynar Painted
  • Mitered Corner Assembly
